AC220V Environmental Rack Monitoring Unit

Name: AC220V Environmental Rack Monitoring Unit
Brand: ESTEL
Price: 1 USD

China AC220V Environmental Rack Monitoring Unit wholesale

Brand Name : ESTEL

Model Number : EA2315001

Certification : ISO9001, CE,

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 5000 pcs/month

Delivery Time : 2 weeks

Packaging Details : carton

Working power supply : AC220 input or DC48V input

Dimension : WxDxH 423mm×223mm×45mm

Operating environment : Temperature: 10°C ~ 55°C, humidity: 10 ~ 85%

Communication mode : RS232 real-time communication or RS485 bus networking

Support network protocol : TCP/IP, SNMP, UDP, HTTP etc

Installation method : 19" rack mount

Contact Now

Outdoor Cabinet Environmental Monitoring Unit RS485 / SNMP Remote Real-Time Communication DC48V or AC220V

1. Profile

This Monitoring Unit is a network monitoring host designed for integrated network rooms that integrates UPS monitoring and extended power environments, such as temperature&humidity, smoke, access, water etc. Adopting the popular 19-inch rack-mount installation, supporting 220V AC or 48V DC power supply, supporting more than 12-way switching value, multi-way relay control output and ambient temperature and humidity expansion, with SMS monitoring and control functions, more secure and more reliable. It will be the best choice for modern unmanned duty rooms.

2. Feature

Working power supply: support AC 220V or DC 48V power supply, more widely used
Size:standard 19 inch rack(423mm*223mm*45mm).
RS232 universal interface: synchronous acquisition of UPS real-time data.
SNMP remote network monitoring: with network interface and intuitive web page display for remote monitoring
Modbus field integrated monitoring: with 485 interface, using the popular modbus protocol, it can realize integrated monitoring of non-network room, form synchronous monitoring single room or multi-room monitoring data, and optional 7-inch touch screen as display
6-way relay control output: flexible output control interface, which can realize control power output and passive switch mode, such as control fan, air conditioner and other corresponding power switch devices.
15-way switching value input detection: It can be used to monitor various room environment equipment such as smoke, flooding, access control, door magnetism, etc..
(The well-designed sensor input interface supports 9 passive sensors and 6 active sensors to realize the corresponding connection of device-to-sensor terminal-to-terminal, simplifying the installation and wiring.)

Human-computer interaction interface: LCD widescreen display makes it easier for users to confirm the parameter settings and operation of the system.
LED indication function: more intuitive understanding of the operating status of the GSM equipment site.
4 way of analog value: can be used with a variety of transmitters to achieve power, temperature, pressure and other aspects of the detection; input range: 0-5V.
Built-in GSM module: Support GSM dual-frequency, 900/1800MHz; realize remote SMS alarm function through SMS.
Support a wider range of UPS protocols: APC, MGE, Eaton, SANTAK, KSTAR, KELONG and many other domestic and foreign brands.

The monitoring functions implemented by the supporting sensors are as follows:
Multi-brand UPS monitoring
Up to 8 channels of temperature and humidity detection
Water leakage (water immersion) test
Fire smoke detection
Infrared passive intrusion detection
Door magnetic (opening) detection
Power distribution air switch state detection
Mains power input state detection.
Electricity quantity acquisition and measurement

3. Appearance

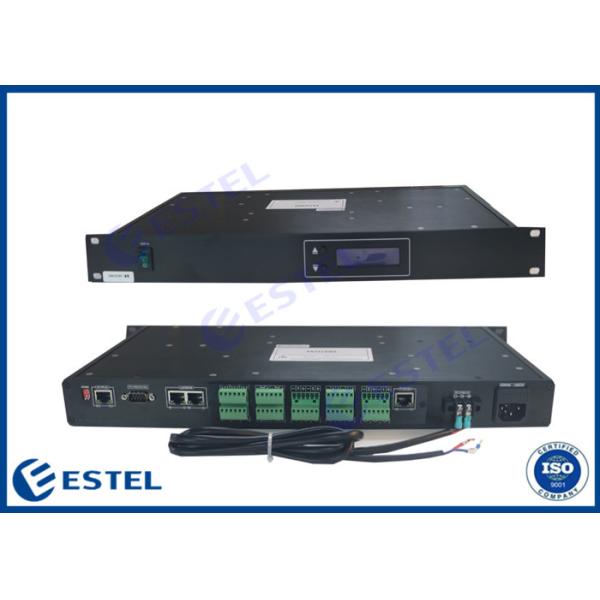

AC220V Environmental Rack Monitoring Unit

4. System parameters

No.	Item	Index
1	Working power supply	Optional: AC220 input or DC48V input
2	Dimension	423mm×223mm×45mm
3	Networking mode	IP-based LAN, WAN, Internet, ADSL, E1, wireless Ethernet, etc.
4	Real-time system clock	Can set UPS timing on/off, battery timing discharge, etc.
5	Alarm log and historical data	Record UPS alarms for analysis
6	SNMP MIB	Support MIB-II(RFC1213, RFC1315, RFC1316),UPS MIB (RFC1628),XPPC MIB
7	Communication mode	RS232 real-time communication or RS485 bus networking
8	Configuration mode	Support Telnet, Terminal (Hyper Terminal), WWW (Web Browser) and other configuration management methods
9	Operating environment	Temperature: 10°C ~ 55°C, humidity: 10 ~ 85%
10	Support network protocol	TCP/IP, UDP, SNMP, Telnet, SNTP, HTTP(Upgrade HTTP protocol to support SSL connection), SMTP, DHCP, DNS, TFTP, ARP, ICMP etc
11	Waterproof state	Non-waterproof device

5. Panel introduction and wiring port definition

(1) Front Panel

POWER: on/off switch;
P:Keep constant brightness during normal operation；
R: Running indicator; flashes once per second during normal operation;
S: The SMS sending status light; the light keep constant brightness when the device is idle, and the light flashes when the device is busy;
E: GSM module indicator; it is starting up when flashing, and it starts successfully flashing every two seconds;
RESET: reset button; long press for more than 3 seconds to reset the GSM module;

: Antenna hole; used to install the standard antenna; strongly prohibited live plug;
SIM-CARD: Press the blue button on the right to eject the SIM card holder and insert the SIM card correctly, strongly prohibited live plug.

(2) Back Panel

AC220V-50(60)Hz : AC 220V input(optional)
DC48V/2.5A : DC 48V input(optional)
RS485/EXT: RS485 communication port, used to expand the monitoring environment temperature and humidity or other device;
RS232/Device: Serial port communication interface for parameter configuration and UPS information query with PC;
Ethernet : UTP 10/100M RJ45 Ethernet interface;
Default: IP configuration; restore the default IP when NO.1 dials down.

(3) Wiring Port

6. Interface After Login
